Medical Supplies China Orthopedic Bone Cutting Machine Small Oscillating Saw System110v 220v

1 / 5

Medical Supplies China Orthopedic Bone Cutting Machine Small Oscillating Saw System110v 220v

Send Inquiry

Product Description

Medical Supplies Orthopedic Bone Cutting Machine Small Oscillating Saw System

Product Description

Technical Data
No.	Item	Value	No.	Item	Value
1	Oscillation	0-16000cpm	4	Sterilization	≤155°C
2	Battery capacity	1400mAh	5	Operation voltage	7.2V
3	Battery type	Ni-MH battery	6	Noise	≤75dB

Configuration List
No.	Accessory	Quantity (PC)	Note

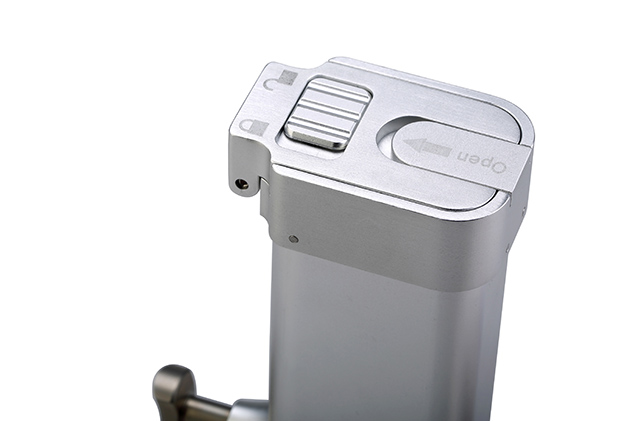

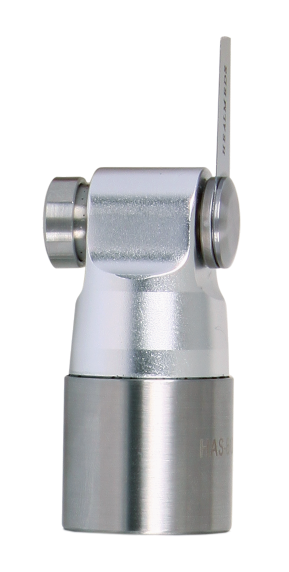

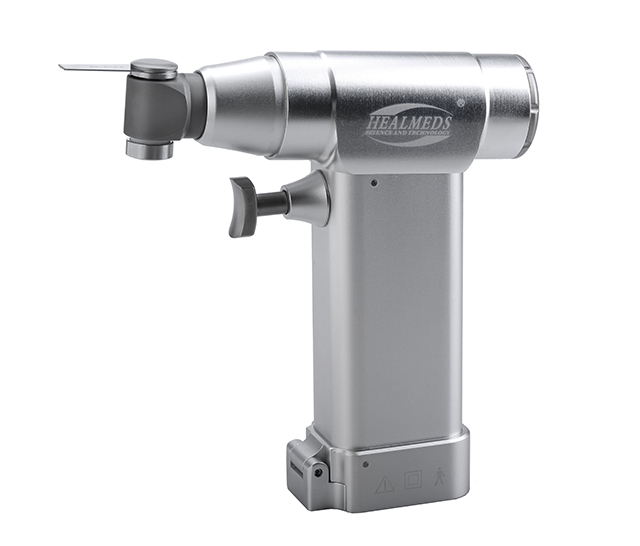

1	Handpiece	1	Standard

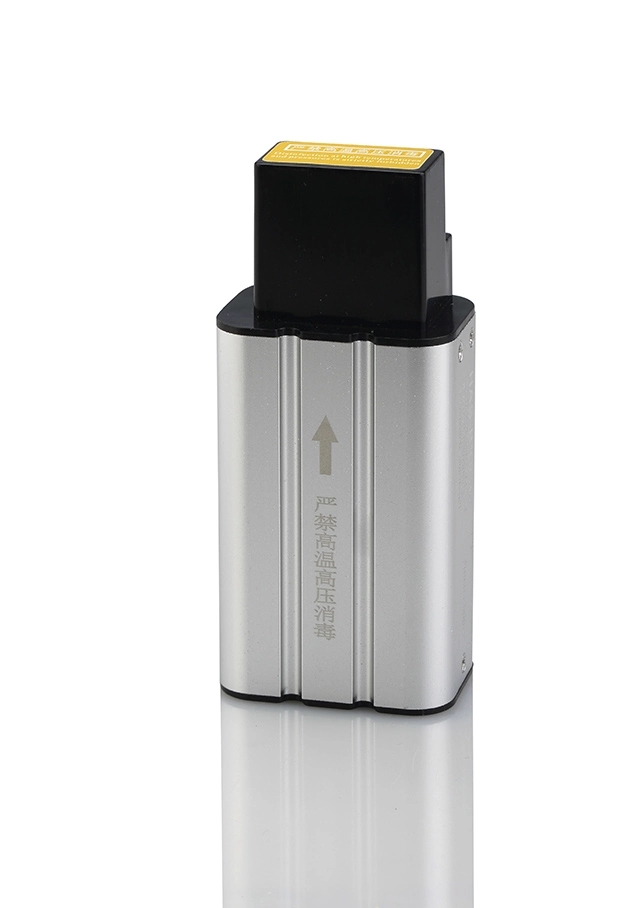

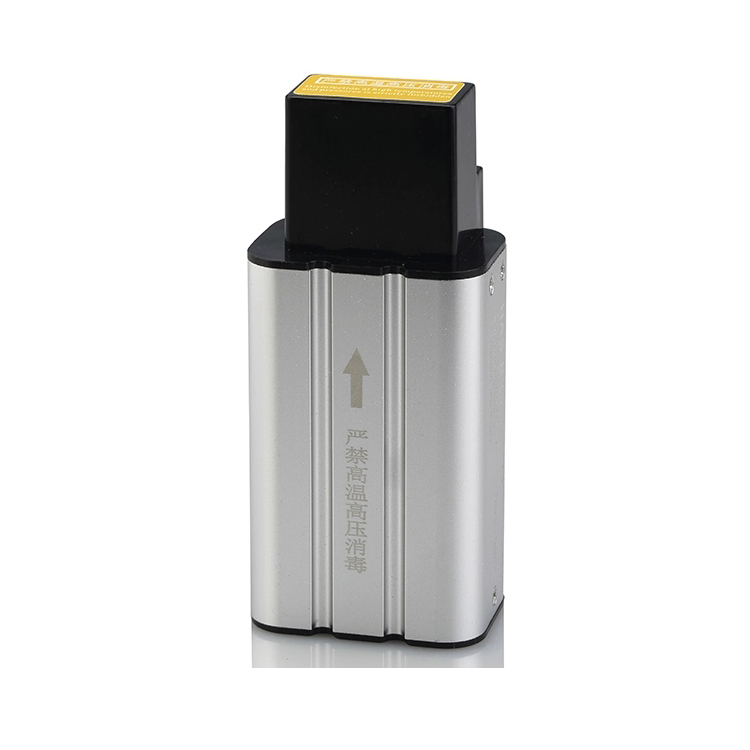

2	Battery	2	Standard

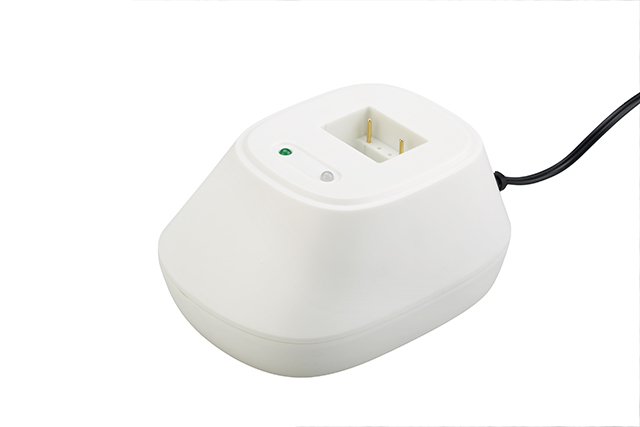

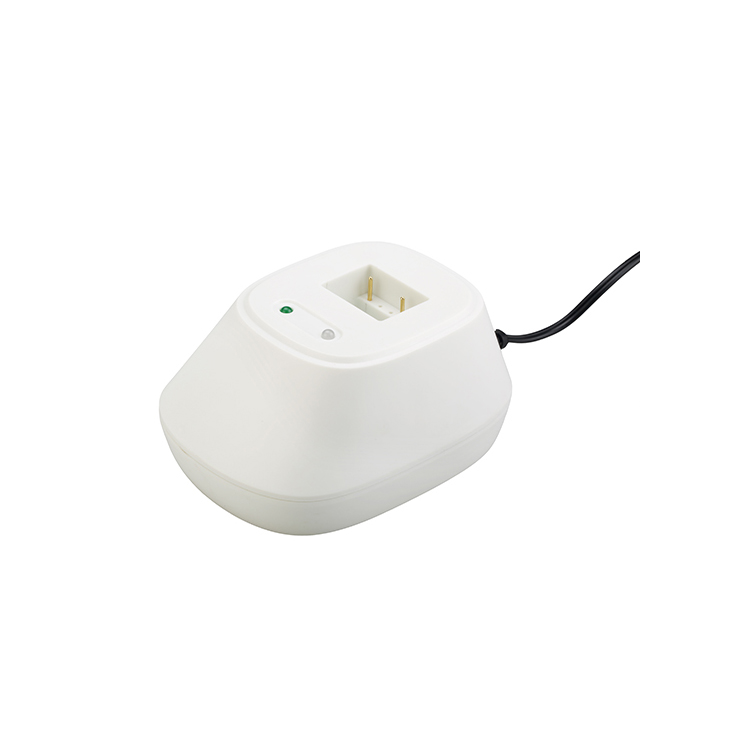

3	Charger	1	Standard
4	Blades	2	Standard

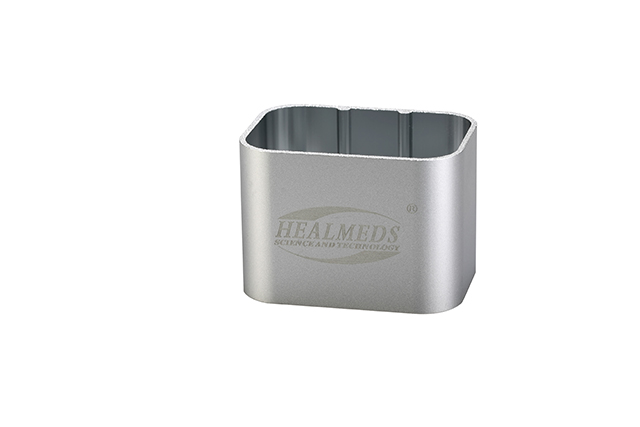

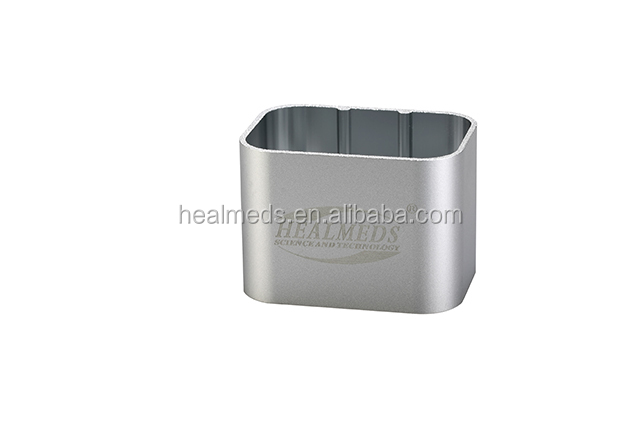

5	Sterilization channel	1	Standard
6	Aluminum alloy case	1	Optional

Product Details Gallery

Key Features

Made of High-strength stainless steel
Mini handpiece, suitable for orthopedic use
Imported Motor, providing excellent performance
No Limit speed-changing, highly convenient control

Warranty Policy

Warranty Information

Warranty for the whole machine is 1 year, for the motor is 2 years, and for the battery and other fast consumption items is 3 months.

Operating Notes

Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ). Exceeding 135 °C may result in damage to the motor.
Normal bone drill can only hold drill bits less than 6mm. Acetabulum reaming drill features big torque with around 300 rpm, and canulate drill operates around 600 rpm.
The battery must be removed from the power tool after surgery. Small automatic discharge will shorten battery life if left inside.
The battery cannot be sterilized and is not autoclavable.
The cranial bur must be washed immediately after the surgery to avoid blood sticking in the bur, and then dried.
The battery space in the handpiece of the tool should not contain any water after sterilization.
The cranial bur blade is made of flexible medical stainless steel. To avoid breakage, it is not extremely hard and is subject to wear. We suggest using each blade for only 1 surgery.

Certifications

CE / ISO13485 / CFDA / GMP / FSC

Exhibition & Conferences

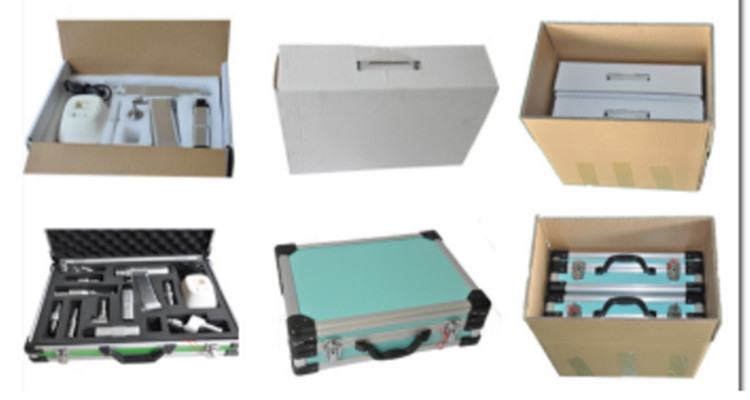

Packaging & Shipping

Packing: Optional Aluminum case for each set, then placed into a high-quality carton, or custom packed on request.

Shipping: Door-to-door courier services like DHL, TNT, UPS, FEDEX, or shipped via air and sea freight.

Frequently Asked Questions

What is the warranty coverage for this system?

The system features a 1-year warranty for the whole machine, a 2-year warranty for the motor, and a 3-month warranty for the battery and other fast-consumption accessories.

What is the maximum temperature limit for sterilization?

The standard sterilize temperature should be ≤ 135 °C. Improved types can support up to ≤ 155 °C. Exceeding these limits will damage the motor unit.

Can the battery pack be autoclaved or sterilized?

No, the battery pack cannot be sterilized and is not autoclavable. It must be removed from the handpiece post-operation.

How often should the cranial bur blades be replaced?

The cranial bur blade is designed to be flexible and is made of medical stainless steel. Because it wears easily during bone procedures, we suggest replacing the blade after each surgery.

What are the speed specifications for different drills in the system?

The normal bone drill holds bits under 6mm. The acetabulum reaming drill operates at approximately 300 rpm, and the canulate drill runs at around 600 rpm.

What packaging options are available for transport?

Each set comes with an optional durable aluminum case which is placed inside a protective shipping carton. Custom packaging configurations can be made on request.
