Send Inquiry

Product Description

Intramedullary Nail Overview
Proximal Femoral Nail System

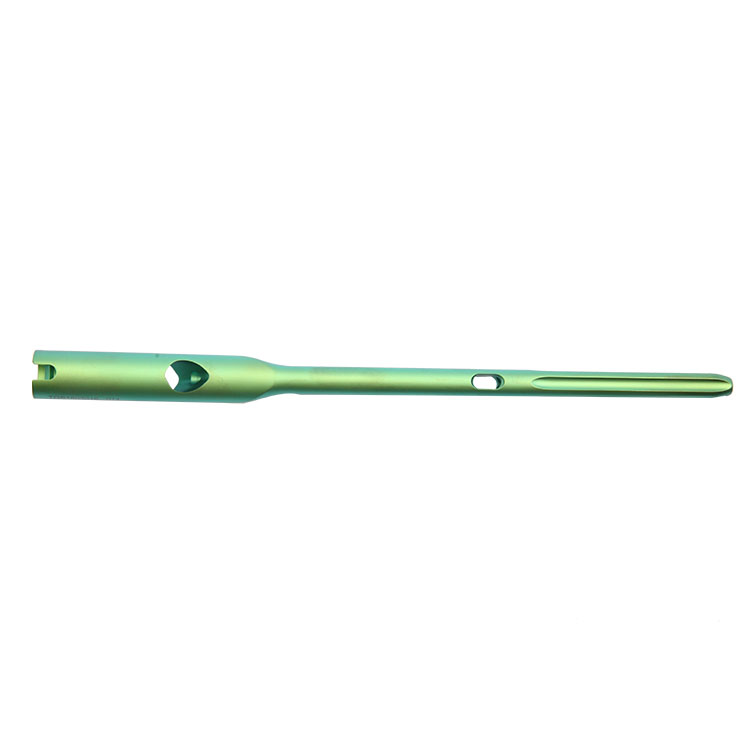

Medical Device Components
Product name Model Material Specification Code
Proximal Femoral Nail Antirotation Intramedullary Nail (non sterilization) SGM-IIK Titanium Alloy 12.0×170×130° 15642170
Intramedullary Nail Description: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Design Radius View
Medullary Cavity Match
1 1.0m Radian Radius

The length is consistent with the anatomy of the FEMORAL medullary cavity.

Screw-in-screw Mechanism
2 Screw-in-screw Design

To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

Sizing and Implantation
3 Optimal Size Configurations

Short nail: diameter of 8.0/ 9.5mm, length of 160mm.
Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

Details Images
Proximal fixation detail
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation detail
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Elastic Nail detail
Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Compression hole detail
Compression:
Special design of compression holes. Helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System Comparison
TFNA System TFNA:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Orthopedic Medical Devices
Spinal Fusion Cages and Orthopedic Implants
Humeral and Tibia Intramedullary Interlocking Nails
Production Facility
Factory Overview 1
Factory Overview 2
Factory Overview 3
Frequently Asked Questions
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through couriers like DHL, FEDEX, UPS, TNT etc. or post upon request from clients. Shipping charges are calculated based on the weight and destination.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
A: Yes, we are fully certified with ISO9001, ISO 13485, and CE approvals for our orthopedic medical devices to ensure quality standards.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers may need to place smaller sample orders in the beginning to test the market. We can offer free samples, but the cost of freight is not covered.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. Please note this might require a slightly longer delivery time.
Q5: Do you have stock for listed products, or are they newly produced? What are your terms of payment?
A: Generally, we maintain a stock for every listed product, which is replenished monthly. However, this is subject to seasonal sales conditions. Please contact us for accurate inventory details. Payment <= 800USD requires 100% in advance. Payment > 800USD requires 30% T/T in advance with the balance due before shipment. Accepted payment methods include L/C, T/T, Western Union, and PayPal.
Q6: What material is used for the orthopedic intramedullary nails?
A: All of our intramedullary nails are manufactured using high-quality Titanium Alloy, which offers superior biocompatibility, durability, and strength.
