Geasure Competitive Price Orthopedic Surgery Trauma Fragment Humeral Interlocking Nails

Product Description

Product Banner
Products Description

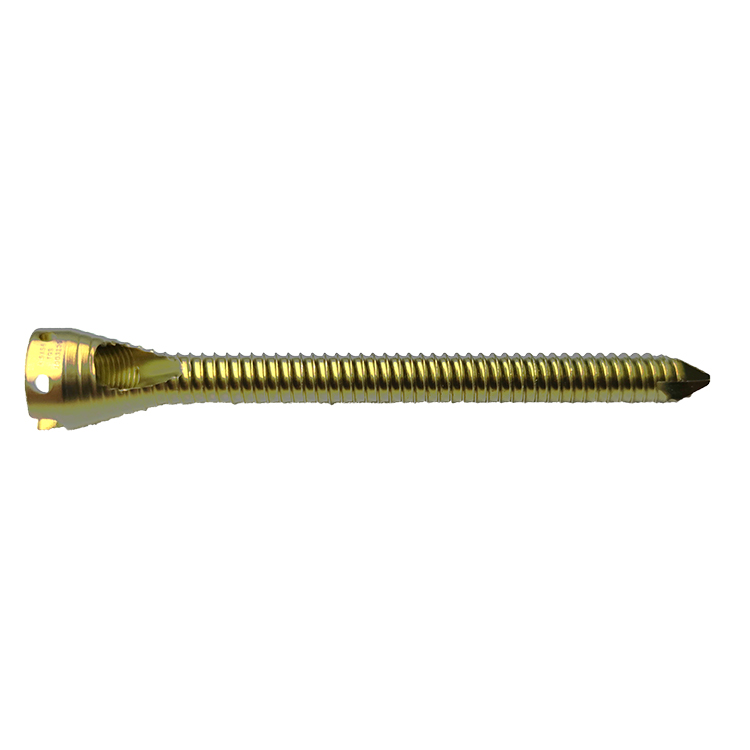

Product Overview
Product name Model Material Specification Code
Humeral nail locking screw I SHG-IK Titanium Alloy 4.5 15724530
Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Advantage Image 1
Advantage Image 2
1. 1.0m radian radius:
The length is consistent with the anatomy of the FEMORAL medullary cavity.
Screw-in-screw design
2. Screw-in-screw design:
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Nail Dimensions
3. Specification Variations:
Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Details Images

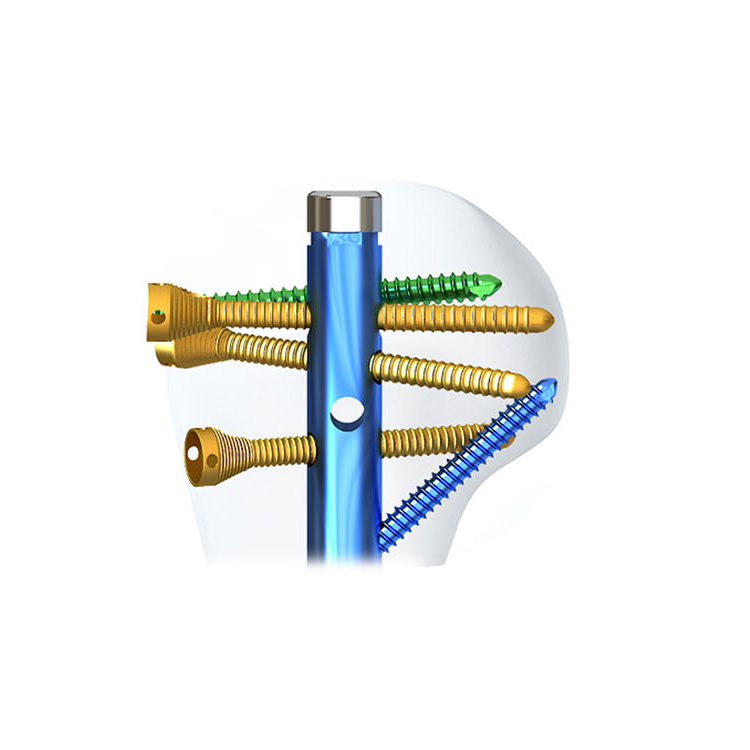

Proximal fixation
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

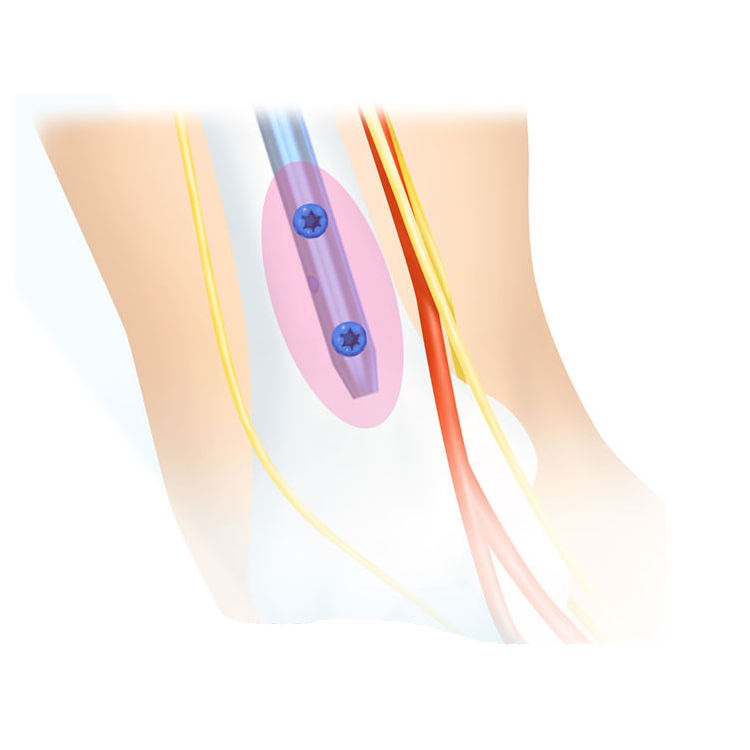

Distal fixation
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Compression design
Compression:
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System
TFNA System TFNA:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
System details Overview
Company Profile
Manufacturing Facility
Laboratory Work
We are a leading orthopedic medical device R & D, manufacturing and operation enterprise. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, we have won the affirmation of many partners. We have a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field of orthopedic medical devices. We have always put the talent development strategy in the first place, continuously improved and built a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation and service innovation. We gather and integrate advantageous resources, serve the great cause of human health, work hard and move forward bravely.
Certifications
Quality Inspection
Why Choose Us
Why Choose Us Diagram
FAQ
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
A: Yes, our products are manufactured under strict standards and hold corresponding ISO and CE certifications.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5: Do you have stock for listed products, or they are newly produced? What are your terms of payment?
A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
Q6: What material is used for the intramedullary nails?
A: All intramedullary nails are made of high-quality Titanium Alloy material to ensure durability, strength, and reduced risk of outer wall impact.
