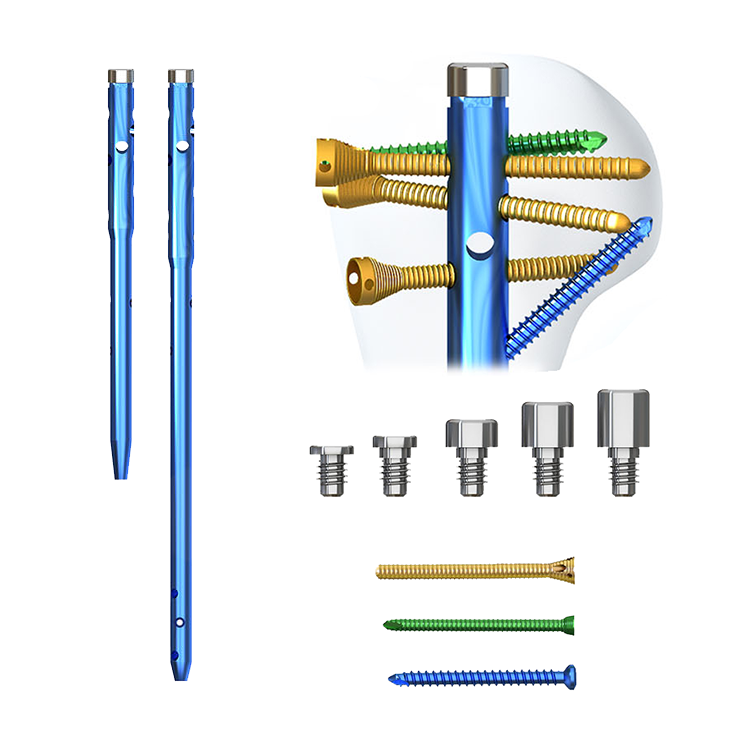

Geasure Trauma Orthopedic Implants Interlocking Titanium Alloy Multi-Lock Humeral Intramedullary Nail CE ISO Certified Class III

Product Description

Intramedullary Nail Header

Products Description

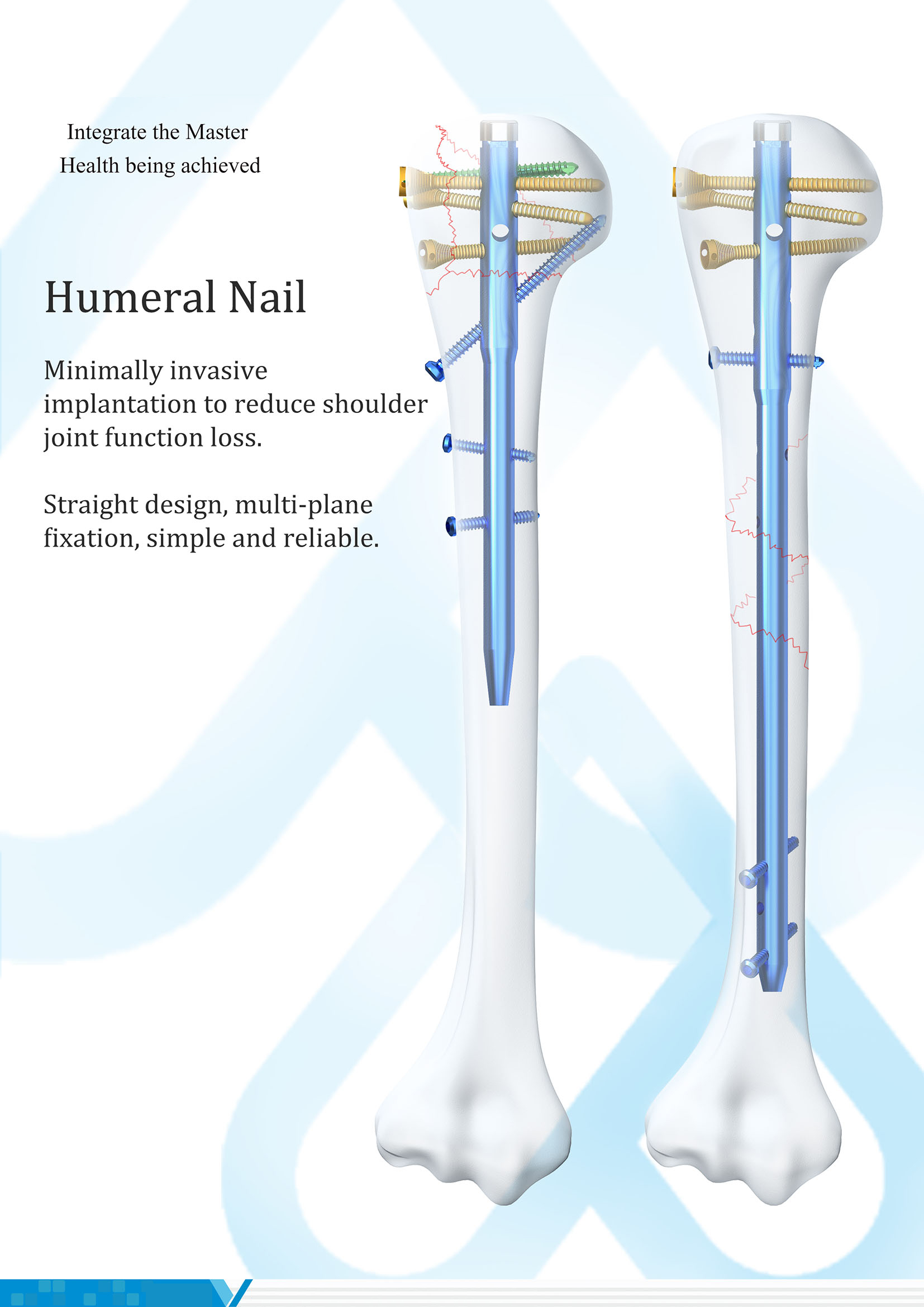

Intramedullary Nail System
Product name Model Material Specification Code
Humeral nail locking screw I SHG-IK Titanium Alloy 4.5 15724530

Key Features

  • High-Quality Material: Fabricated from medical-grade Titanium alloy.
  • Optimal Design: Easy to insert and take out, minimizing surgical runtime.
  • Reduced Risk: Minimizes outer wall impact and main nail inward movement.
  • Universal Application: Diameters suited for all clinical applications.
  • Minimally Invasive: Designed for simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160

Our Advantages

Our Advantages Overview
1.0m radian radius
1.0m Radian Radius
The length is perfectly consistent with the anatomy of the FEMORAL medullary cavity.
Screw-in-screw design
Screw-in-screw Design
Further improves the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Multiple Nail Options
Multiple Nail Options
Short nail: diameter 8.0/9.5mm, length 160mm. Long nail: diameter 7.0/8.5mm, length 180-315mm (15mm interval). All nails have left/right types and Titanium Alloy material.

Details Images

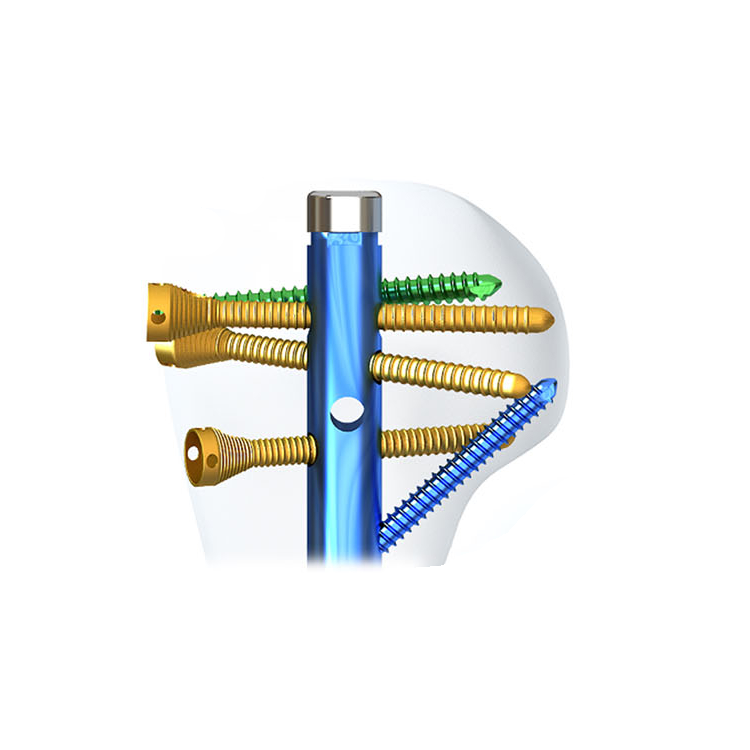

Proximal fixation detail

Proximal Fixation

Multi-plane and Multi-locking screw fixation options provide multiple choices for operation to achieve optimal fixation stability. Screw-in-screw design further improves fixation strength in osteoporotic bones. The blunt head locking screw minimizes risk of excessive penetration, while the countersinking design reduces soft tissue irritation.

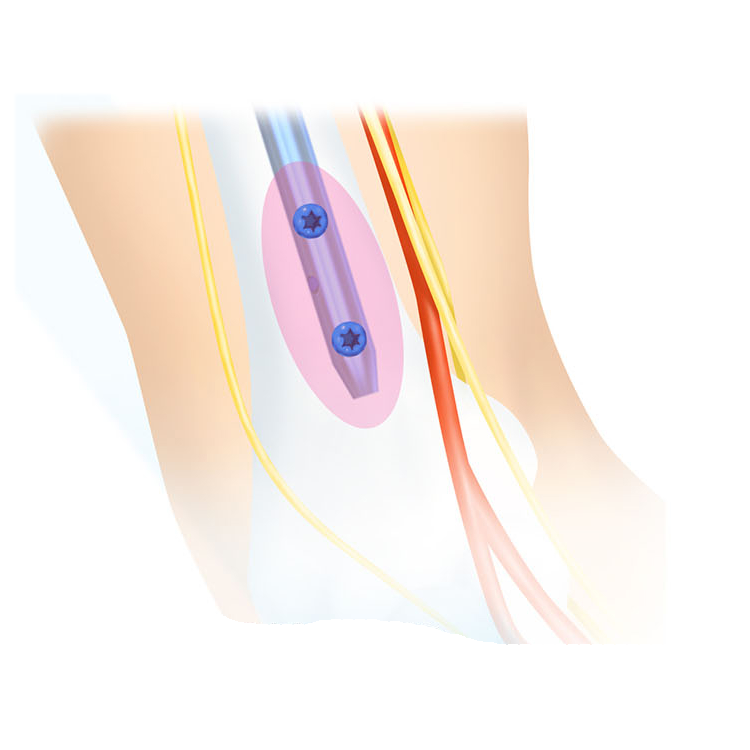

Distal fixation detail

Distal Fixation

Short screw features two different plane holes for secure locking. Long screw includes three locking holes positioned to avoid key blood vessels, situated safely between the median and radial nerves. Two anterior/posterior locking holes facilitate manual operation, minimizing rotation and displacement of distal fractures.

Compression mechanism detail

Compression

Features a custom compression hole design that helps increase the stability of transverse or short oblique fractures. The self-sustaining compression mechanism operates without requiring static screws to maintain compression during surgical operations.

TFNA System detail

TFNA System

Compared with G3 (radian radius of 1.5m), the distal location of TFNA with a 1.0m radian radius in the center of the medullary cavity is twice as likely to achieve precise anatomical alignment.

Specification dimensions layout

Main Products

Company Profile

We are a leading orthopedic medical device R & D, manufacturing, and operation enterprise. The company focuses on the development, manufacturing, and sales of orthopedic trauma, spine, and bone joint implants and devices. The sales network covers the whole country and has sales offices in many regions. With first-class production equipment, professional R & D, technology, and manufacturing teams, a quality management system in line with international standards, and an efficient marketing service strategy, we have won the affirmation of many partners.

Our team includes a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field. We have always put the talent development strategy in the first place, continuously building a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation, and service innovation, we gather and integrate advantageous resources to serve the great cause of human health, working hard and moving forward bravely.

Why Choose Us

Why Choose Us infographic

FAQ

Would you please give some information on shipping mode and charges?

A: Normally we send through couriers like DHL, FEDEX, UPS, TNT, etc., or post upon request from clients.

Do you have ISO9001, ISO 13485, CE approvals?

A: Yes, our products are manufactured under strict adherence to international standards and we maintain relevant global medical device certifications.

What is the minimum order that we can place? Do you provide free samples?

A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning in order to test market our products. We could offer free samples, but do not pay the cost of freight.

Can I buy products not shown but similar to your catalogue?

A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Do you have stock for listed products, or they are newly produced? What are your terms of payment?

A: Generally, we have stock for every listed product, which is replenished monthly. However, it depends on our current sales conditions. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal, etc.

How is the quality of your titanium alloy implants tested?

A: All products undergo rigorous mechanical testing (torsion, tension, fatigue test) and surface inspect analysis to ensure they meet clinical safety standards before shipment.
